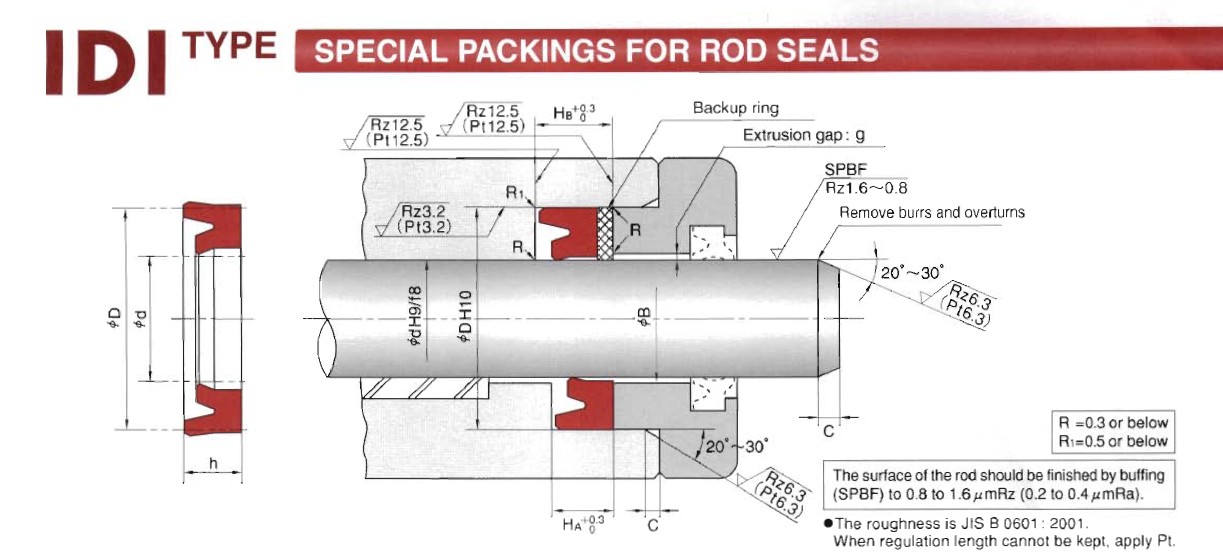

IDI型軸用密封
IDI型軸用密封主要材料是邵爾94度聚氨酯，壓力可達(dá)到70MPA，溫度：-35度---+100度，有極好的耐磨性和密封能力。他有較大的截面，可用于大范圍的壓力。
| 密封件公稱尺寸 | 溝槽部分尺寸 | 訂貨號 | ||||
| d | D | h | HA | HB | C | |
| 6.3 | 14.3 | 5 | 5.7 | 7.7 | 2.5 | FU0021-F0 |
| 16.3 | 6 | 7 | 9 | FU0022-F0 | ||
| 16.3 | 7.5 | 8.5 | 10.5 | FU0023-F0 | ||
| 16.3 | 8 | 9 | 11 | FU0024-F0 | ||
| 8 | 16 | 5 | 5.7 | 7.7 | FU0039-F0 | |
| 18 | 6 | 7 | 9 | FU0041-F0 | ||
| 18 | 7.5 | 8.5 | 10.5 | FU0042-F0 | ||
| 18 | 8 | 9 | 11 | FU0043-F0 | ||
| 9 | 17 | 5 | 5.7 | 7.7 | FU0051-F0 | |
| 19 | 6 | 7 | 9 | FU0052-F0 | ||
| 19 | 7.5 | 8.5 | 10.5 | FU0053-F0 | ||
| 19 | 8 | 9 | 11 | FU0054-F0 | ||
| 10 | 18 | 5 | 5.7 | 7.7 | FU0064-F0 | |
| 20 | 6 | 7 | 9 | FU0066-F0 | ||
| 20 | 7.5 | 8.5 | 10.5 | FU0068-F0 | ||
| 20 | 8 | 9 | 11 | FU0069-F0 | ||
| 11.2 | 19.2 | 5 | 5.7 | 7.7 | FU0078-F0 | |
| 21.2 | 6 | 7 | 9 | FU0079-F0 | ||
| 21.2 | 7.5 | 8.5 | 10.5 | FU0080-F0 | ||
| 21.2 | 8 | 9 | 11 | FU0081-F0 | ||
| 12.5 | 20.5 | 5 | 5.7 | 7.7 | FU0098-F0 | |
| 22.5 | 6 | 7 | 9 | FU0100-F0 | ||
| 22.5 | 7.5 | 8.5 | 10.5 | FU0101-F0 | ||
| 22.5 | 8 | 9 | 11 | FU0102-F0 | ||
| 14 | 22 | 5 | 5.7 | 7.7 | FU0116-F0 | |
| 24 | 6 | 7 | 9 | FU0120-F0 | ||
| 24 | 7.5 | 8.5 | 10.5 | FU0121-F0 | ||
| 24 | 8 | 9 | 11 | FU0122-F0 | ||
| 15 | 23 | 5 | 5.7 | 7.7 | FU0131-F0 | |
| 25 | 6 | 7 | 9 | FU0134-F0 | ||
| 25 | 8 | 9 | 11 | FU0135-F0 | ||
| 28 | 8 | 9 | 11 | 3.5 | FU0136-F0 | |
| 28 | 10 | 11 | 13 | FU0137-F0 | ||
| 16 | 24 | 5 | 5.7 | 7.7 | 2.5 | FU0150-F0 |
| 26 | 6 | 7 | 9 | FU0155-F0 | ||
| 26 | 7.5 | 8.5 | 10.5 | FU0156-F0 | ||
| 26 | 8 | 9 | 11 | FU0157-F0 | ||
| 18 | 28 | 6 | 7 | 9 | FU0181-F0 | |
| 28 | 8 | 9 | 11 | FU0182-F0 | ||
| 31 | 8 | 9 | 11 | 3.5 | FU0185-F0 | |
| 31 | 10 | 11 | 13 | FU0186-F0 | ||
| 20 | 30 | 6 | 7 | 9 | FU0214-F0 | |
| 30 | 8 | 9 | 11 | FU0215-F0 | ||
| 33 | 8 | 9 | 11 | FU0220-F0 | ||
| 33 | 10 | 11 | 13 | FU0221-F0 | ||
| 22 | 35 | 10 | 11 | 13 | FU0249-F0 | |
| 22.4 | 32.4 | 6 | 7 | 9 | FU0262-F0 | |
| 32.4 | 8 | 9 | 11 | FU0263-F0 | ||
| 35.4 | 8 | 9 | 11 | FU0264-F0 | ||
| 35.4 | 10 | 11 | 13 | FU0265-F0 | ||
| 25 | 35 | 6 | 7 | 9 | FU0279-F0 | |
| 35 | 8 | 9 | 11 | FU0282-F0 | ||
| 38 | 8 | 9 | 11 | FU0287-F0 | ||
| 38 | 10 | 11 | 13 | 4 | FU0288-F0 | |
| 40 | 9 | 10 | 12 | FU0291-F0 | ||
| 40 | 10 | 11 | 13 | FU0292-F0 | ||
| 27 | 40 | 10 | 11 | 14 | FU2130-F0 | |
| 28 | 38 | 6 | 7 | 10 | FU0322-F0 | |
| 38 | 8 | 9 | 12 | FU0323-F0 | ||
| 41 | 8 | 9 | 12 | FU0334-F0 | ||
| 41 | 10 | 11 | 14 | FU0335-F0 | ||
| 43 | 9 | 10 | 13 | FU0339-F0 | ||
| 43 | 10 | 11 | 14 | FU0340-F0 | ||
| 30 | 40 | 8 | 9 | 12 | FU0359-F0 | |
| 43 | 10 | 11 | 14 | FU0364-F0 | ||
| 45 | 9 | 10 | 13 | FU0367-F0 | ||
| 45 | 10 | 11 | 14 | FU0368-F0 | ||
| 31.5 | 41.5 | 8 | 9 | 12 | FU0383-F0 | |
| 44.5 | 8 | 9 | 12 | FU0384-F0 | ||
| 44.5 | 10 | 11 | 14 | FU0385-F0 | ||
| 46.5 | 9 | 10 | 13 | FU0386-F0 | ||
| 46.5 | 10 | 11 | 14 | FU0387-F0 | ||
| 34 | 50 | 12 | 13 | 16 | FU0408-F0 | |
| 35 | 45 | 8 | 9 | 12 | FU0427-F0 | |
| 50 | 9 | 10 | 13 | FU0436-F0 | ||
| 50 | 10 | 11 | 14 | FU0437-F0 | ||
| 50 | 12 | 13 | 16 | FU0438-F0 | ||
| 35.5 | 45.5 | 8 | 9 | 12 | FU0453-F0 | |
| 50.5 | 9 | 10 | 13 | FU0455-F0 | ||
| 50.5 | 10 | 11 | 14 | FU0456-F0 | ||
| 51.5 | 10 | 11 | 14 | FU0457-F0 | ||
| 51.5 | 12 | 13 | 16 | FU0458-F0 | ||
| 40 | 50 | 8 | 9 | 12 | 4 | FU0498-F0 |
| 55 | 9 | 10 | 13 | FU0504-F0 | ||
| 55 | 10 | 11 | 14 | FU0505-F0 | ||
| 56 | 10 | 11 | 14 | FU0508-F0 | ||
| 56 | 12 | 13 | 16 | FU0509-F0 | ||
| 45 | 55 | 8 | 9 | 12 | FU0569-F0 | |
| 60 | 9 | 10 | 13 | FU0575-F0 | ||
| 60 | 10 | 11 | 14 | FU0577-F0 | ||
| 61 | 10 | 11 | 14 | FU0579-F0 | ||
| 61 | 12 | 13 | 16 | FU0580-F0 | ||
| 47 | 63 | 12 | 13 | 16 | FU0591-F0 | |
| 50 | 60 | 8 | 9 | 12 | FU0620-F0 | |
| 65 | 9 | 10 | 13 | FU0630-F0 | ||
| 65 | 10 | 11 | 14 | FU0631-F0 | ||
| 66 | 10 | 11 | 14 | FU0634-F0 | ||
| 66 | 12 | 13 | 16 | FU0635-F0 | ||
| 70 | 12 | 13 | 16 | FU0639-F0 | ||
| 53 | 69 | 12 | 13 | 16 | FU0682-F0 | |
| 55 | 65 | 8 | 9 | 12 | FU0696-F0 | |
| 70 | 9 | 10 | 13 | FU0700-F0 | ||
| 70 | 10 | 11 | 14 | FU0701-F0 | ||
| 71 | 10 | 11 | 14 | FU0703-F0 | ||
| 71 | 12 | 13 | 16 | FU0704-F0 | ||
| 75 | 12 | 13 | 16 | FU0708-F0 | ||
| 56 | 66 | 8 | 9 | 12 | FU0723-F0 | |
| 71 | 9 | 10 | 13 | FU0724-F0 | ||
| 71 | 10 | 11 | 14 | FU0725-F0 | ||
| 72 | 10 | 11 | 14 | FU0726-F0 | ||
| 72 | 12 | 13 | 16 | FU0727-F0 | ||
| 76 | 12 | 13 | 16 | 4 | FU0728-F0 | |
| 60 | 70 | 8 | 9 | 12 | FU0747-F0 | |
| 75 | 9 | 10 | 13 | FU0753-F0 | ||
| 75 | 10 | 11 | 14 | FU0754-F0 | ||
| 76 | 10 | 11 | 14 | FU0756-F0 | ||
| 76 | 12 | 13 | 16 | FU0757-F0 | ||
| 80 | 12 | 13 | 16 | FU0761-F0 | ||
| 63 | 73 | 8 | 9 | 12 | FU0787-F0 | |
| 78 | 9 | 10 | 13 | FU0788-F0 | ||
| 78 | 10 | 11 | 14 | FU0789-F0 | ||
| 79 | 10 | 11 | 14 | FU0790-F0 | ||
| 79 | 12 | 13 | 16 | FU0791-F0 | ||
| 83 | 12 | 13 | 16 | FU0793-F0 | ||
| 64 | 80 | 12 | 13 | 16 | FU2131-F0 | |
| 65 | 75 | 8 | 9 | 12 | 5 | FU0810-F0 |
| 80 | 9 | 10 | 13 | FU0815-F0 | ||
| 80 | 12 | 13 | 16 | FU0816-F0 | ||
| 85 | 12 | 13 | 16 | FU0819-F0 | ||
| 67 | 82 | 9 | 10 | 13 | FU0830-F0 | |
| 87 | 15 | 16 | 19 | FU0832-F0 | ||
| 70 | 80 | 8 | 9 | 12 | FU0850-F0 | |
| 85 | 9 | 10 | 13 | FU0857-F0 | ||
| 85 | 10 | 11 | 14 | FU0858-F0 | ||
| 90 | 12 | 13 | 16 | FU0862-F0 | ||
| 90 | 15 | 16 | 19 | FU0864-F0 | ||
| 71 | 81 | 8 | 9 | 12 | FU0881-F0 | |
| 86 | 9 | 10 | 13 | FU0882-F0 | ||
| 86 | 10 | 11 | 14 | FU0883-F0 | ||
| 91 | 12 | 13 | 16 | FU0884-F0 | ||
| 91 | 15 | 16 | 19 | FU0885-F0 | ||
| 75 | 85 | 8 | 9 | 12 | FU0903-F0 | |
| 90 | 9 | 10 | 13 | FU0906-F0 | ||
| 90 | 10 | 11 | 14 | FU0907-F0 | ||
| 95 | 12 | 13 | 16 | FU0910-F0 | ||
| 95 | 15 | 16 | 19 | FU0911-F0 | ||
| 80 | 90 | 8 | 9 | 12 | FU0940-F0 | |
| 95 | 9 | 10 | 13 | FU0942-F0 | ||
| 95 | 10 | 11 | 14 | FU0943-F0 | ||
| 100 | 12 | 13 | 16 | FU0948-F0 | ||
| 100 | 15 | 16 | 19 | FU0949-F0 | ||
| 85 | 100 | 10 | 11 | 14 | FU0985-F0 | |
| 105 | 12 | 13 | 16 | FU0989-F0 | ||
| 105 | 15 | 16 | 19 | FU0990-F0 | ||
| 90 | 105 | 10 | 11 | 14 | FU1025-F2 | |
| 110 | 12 | 13 | 16 | FU1030-F1 | ||
| 110 | 15 | 16 | 19 | FU1031-F0 | ||
| 95 | 110 | 10 | 11 | 14 | FU1052-F0 | |
| 115 | 12 | 13 | 16 | FU1056-F0 | ||
| 115 | 15 | 16 | 19 | FU1057-F0 | ||
| 100 | 115 | 10 | 11 | 14 | 5 | FU1083-F0 |
| 120 | 12 | 13 | 16 | FU1089-F0 | ||
| 120 | 15 | 16 | 19 | FU1091-F0 | ||
| 105 | 120 | 10 | 11 | 14 | FU1126-F0 | |
| 125 | 12 | 16 | 19 | FU1128-F1 | ||
| 125 | 16 | 17 | 20 | FU1130-F0 | ||
| 106 | 121 | 10 | 11 | 14 | FU1137-F0 | |
| 126 | 15 | 16 | 19 | FU1138-F0 | ||
| 126 | 16 | 17 | 20 | FU1139-F0 | ||
| 110 | 125 | 10 | 11 | 14 | FU1158-F0 | |
| 130 | 15 | 16 | 19 | FU1165-F0 | ||
| 130 | 16 | 17 | 20 | FU1166-F0 | ||
| 112 | 127 | 9 | 10 | 13 | FU1180-F0 | |
| 127 | 10 | 11 | 14 | FU1181-F0 | ||
| 132 | 15 | 16 | 19 | FU1182-F0 | ||
| 132 | 16 | 17 | 20 | FU1183-F0 | ||
| 118 | 133 | 10 | 11 | 14 | FU1206-F0 | |
| 138 | 15 | 16 | 19 | FU1207-F0 | ||
| 138 | 16 | 17 | 20 | FU1208-F0 | ||
| 120 | 135 | 10 | 11 | 14 | FU1221-F0 | |
| 140 | 15 | 16 | 19 | FU1224-F0 | ||
| 140 | 16 | 17 | 20 | FU1225-F0 | ||
| 125 | 140 | 10 | 11 | 14 | 6.5 | FU1253-F0 |
| 145 | 12 | 13 | 16 | FU1256-F0 | ||
| 145 | 16 | 17 | 20 | FU1258-F0 | ||
| 150 | 19 | 20 | 23 | FU2132-F0 | ||
| 150 | 20 | 21 | 24 | FU1260-F0 | ||
| 130 | 145 | 10 | 11 | 14 | FU1281-F2 | |
| 150 | 12 | 13 | 16 | FU1283-F0 | ||
| 150 | 16 | 17 | 20 | FU1285-F0 | ||
| 132 | 157 | 20 | 21 | 24 | FU1295-F0 | |
| 135 | 160 | 19 | 20 | 23 | FU2133-F0 | |
| 160 | 20 | 21 | 24 | FU2179-F0 | ||
| 140 | 155 | 10 | 11 | 14 | FU1324-F0 | |
| 160 | 12 | 13 | 16 | FU1325-F0 | ||
| 160 | 16 | 17 | 20 | FU1328-F0 | ||
| 165 | 19 | 20 | 23 | FU1332-F0 | ||
| 165 | 20 | 21 | 24 | FU1333-F0 | ||
| 145 | 170 | 19 | 20 | 23 | FU2134-F0 | |
| 170 | 20 | 21 | 24 | FU2180-F0 | ||
| 150 | 165 | 10 | 11 | 14 | 6.5 | FU1360-F0 |
| 170 | 12 | 13 | 16 | FU1361-F0 | ||
| 170 | 16 | 17 | 20 | FU1364-F0 | ||
| 175 | 16 | 17 | 20 | FU1366-F0 | ||
| 175 | 20 | 21 | 24 | FU1368-F0 | ||
| 155 | 180 | 19 | 20 | 24 | FU1393-F0 | |
| 180 | 20 | 21 | 25 | FU2181-F0 | ||
| 160 | 175 | 10 | 11 | 15 | FU1407-F0 | |
| 180 | 12 | 13 | 17 | FU1409-F0 | ||
| 180 | 16 | 17 | 21 | FU1412-F0 | ||
| 185 | 16 | 17 | 21 | FU1414-F0 | ||
| 185 | 19 | 20 | 24 | FU2076-F0 | ||
| 185 | 20 | 21 | 25 | FU1416-F0 | ||
| 170 | 185 | 10 | 11 | 15 | FU1444-F0 | |
| 190 | 12 | 13 | 17 | FU1445-F0 | ||
| 190 | 16 | 17 | 21 | FU1447-F0 | ||
| 195 | 16 | 17 | 21 | FU1449-F0 | ||
| 195 | 20 | 21 | 25 | FU1450-F0 | ||
| 175 | 200 | 19 | 20 | 24 | 6.5 | FU1463-F0 |
| 200 | 20 | 21 | 25 | FU2182-F0 | ||
| 180 | 200 | 16 | 17 | 21 | FU1486-F0 | |
| 205 | 16 | 17 | 21 | FU1491-F0 | ||
| 205 | 19 | 20 | 24 | FU1492-F0 | ||
| 205 | 20 | 21 | 25 | FU1493-F0 | ||
| 190 | 210 | 16 | 17 | 21 | FU1518-F0 | |
| 215 | 16 | 17 | 21 | FU1520-F0 | ||
| 215 | 20 | 21 | 25 | FU1521-F0 | ||
| 199 | 219 | 11 | 12 | 16 | FU1530-F0 | |
| 219 | 15 | 16 | 20 | FU1531-F0 | ||
| 224 | 16 | 17 | 21 | FU1533-F0 | ||
| 224 | 19 | 20 | 24 | FU1535-F0 | ||
| 200 | 220 | 16 | 17 | 21 | FU1545-F0 | |
| 225 | 16 | 17 | 21 | FU1548-F0 | ||
| 225 | 19 | 20 | 24 | FU2135-F0 | ||
| 225 | 20 | 21 | 25 | FU1550-F0 | ||
| 210 | 230 | 16 | 17 | 21 | FU1576-F0 | |
| 235 | 16 | 17 | 21 | FU1578-F0 | ||
| 235 | 19 | 20 | 24 | FU1580-F0 | ||
| 235 | 20 | 21 | 25 | FU1581-F0 | ||
| 220 | 240 | 16 | 17 | 21 | FU1597-F0 | |
| 245 | 16 | 17 | 21 | FU1598-F0 | ||
| 245 | 19 | 20 | 24 | FU1600-F0 | ||
| 245 | 20 | 21 | 25 | FU1601-F0 | ||
| 224 | 244 | 11 | 12 | 16 | 6.5 | FU1608-F0 |
| 244 | 15 | 16 | 20 | FU1610-F0 | ||
| 249 | 15 | 16 | 20 | FU1611-F0 | ||
| 249 | 18 | 19 | 23 | FU1612-F0 | ||
| 249 | 19 | 20 | 24 | FU1613-F0 | ||
| 225 | 245 | 16 | 17 | 21 | FU1622-F0 | |
| 250 | 16 | 17 | 21 | FU1624-F0 | ||
| 250 | 19 | 20 | 24 | FU1626-F0 | ||
| 250 | 20 | 21 | 25 | FU1627-F0 | ||
| 230 | 250 | 16 | 17 | 21 | FU1638-F0 | |
| 255 | 16 | 17 | 21 | FU1640-F0 | ||
| 255 | 19 | 20 | 24 | FU1642-F0 | ||
| 255 | 20 | 21 | 25 | FU1643-F0 | ||
| 240 | 260 | 16 | 17 | 21 | FU1658-F0 | |
| 265 | 16 | 17 | 21 | FU1661-F0 | ||
| 265 | 19 | 20 | 24 | FU1663-F0 | ||
| 265 | 20 | 21 | 25 | FU1664-F0 | ||
| 250 | 270 | 16 | 17 | 21 | FU1679-F0 | |
| 275 | 16 | 17 | 21 | FU1681-F0 | ||
| 275 | 19 | 20 | 24 | FU1683-F0 | ||
| 275 | 20 | 21 | 25 | FU1684-F0 | ||
| 260 | 285 | 19 | 20 | 24 | 8 | FU1705-F0 |
| 290 | 19 | 20 | 24 | FU1707-F0 | ||
| 265 | 297 | 24 | 25 | 29 | FU1714-F0 | |
| 297 | 25 | 26 | 30 | FU2183-F0 | ||
| 270 | 295 | 19 | 20 | 24 | FU1721-F0 | |
| 300 | 19 | 20 | 24 | FU1723-F0 | ||
| 300 | 24 | 25 | 29 | FU1725-F0 | ||
| 300 | 25 | 26 | 30 | FU1726-F0 | ||
| 280 | 305 | 19 | 20 | 24 | FU1734-F0 | |
| 310 | 19 | 20 | 24 | FU1736-F0 | ||
| 312 | 24 | 25 | 29 | FU2136-F0 | ||
| 312 | 25 | 26 | 30 | FU2184-F0 | ||
| 290 | 315 | 19 | 20 | 24 | FU1749-F0 | |
| 320 | 19 | 20 | 24 | FU1751-F0 | ||
| 300 | 325 | 19 | 20 | 24 | FU1763-F0 | |
| 330 | 19 | 20 | 24 | FU1765-F0 | ||
| 332 | 24 | 25 | 29 | FU2137-F0 | ||
| 332 | 25 | 26 | 30 | FU2185-F0 | ||
